Multicluster-Box 12U

Multicluster Box for SUNNY ISLAND 4548-US and 6048-US

Simple design of large off-grid systems

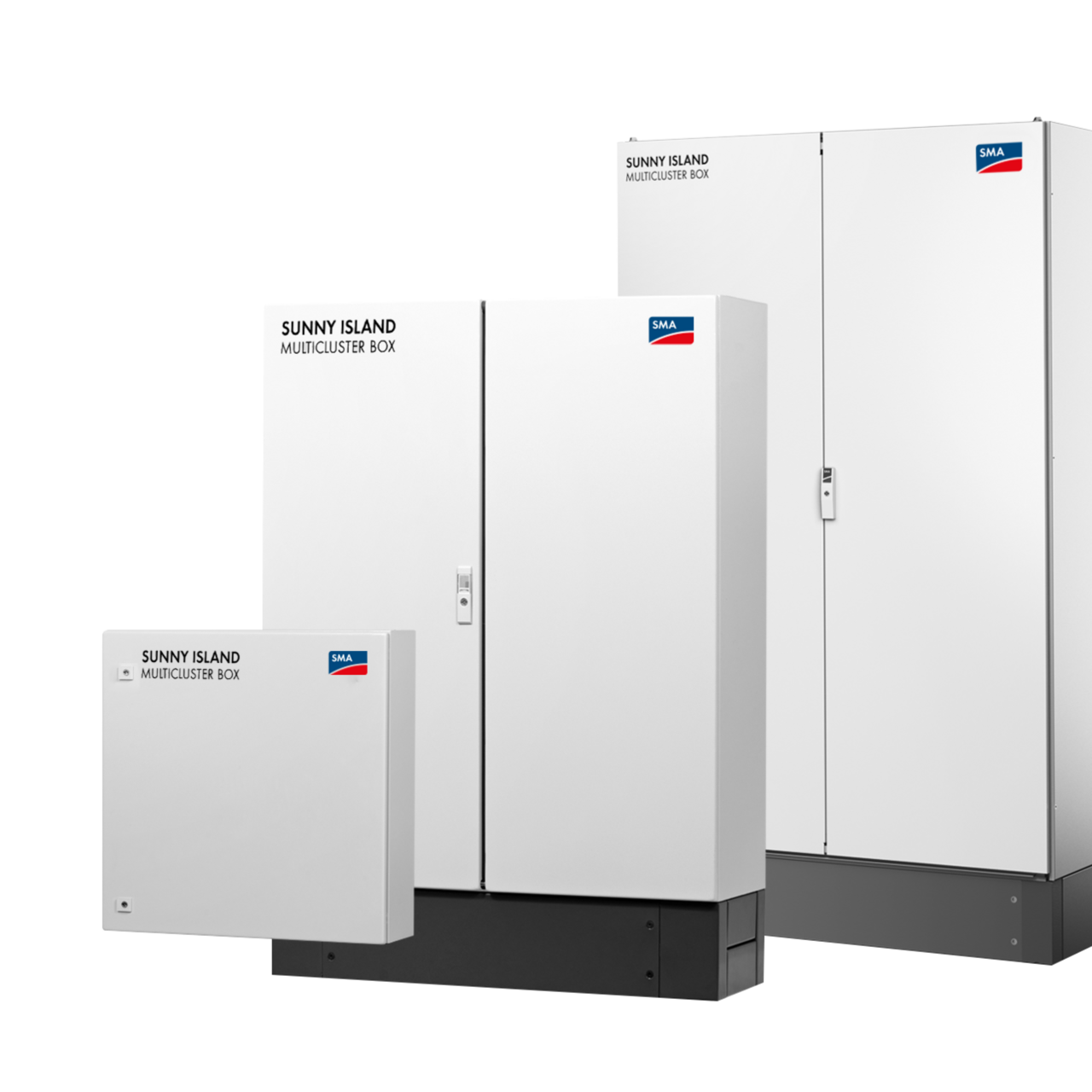

The Multicluster Box for the Sunny Island 4548-US and 6048-US is the ideal solution for the easy installation of off-grid systems up to 100 kW. Two to four three-phase clusters, each with three Sunny Islands, can be connected in parallel. The Multicluster Box is pre-wired for operation and equipped with a main connection for PV or wind energy systems. The communication cables necessary for installation are also included.

Flexible

  • Integrated AC distribution for Sunny Island, generator and PV systems
  • Can accommodate various generator, PV and load sizes
  • For systems up to 100 kW


Simple

  • Load shedding, Sunny Island and generator contactors and circuit breakers
  • Circuit breaker for PV system


Enhanced Safety

  • Reverse current monitoring
  • Simple emergency operation of the generator
Language

Data sheet

MULTICLUSTER BOX for SUNNY ISLAND 4548-US and 6048-US - Simple design of large off-grid systems CLUSTBOX-DUS140330W.pdf
  • Type: Data sheet
  • Language: English (US)
  • Number: CLUSTBOX-DUS140330
  • Version: 3.0

Installation Guide

MULTICLUSTER BOX FOR SUNNY ISLAND 4548‑US/5048‑US/6048‑US - Installation Manual MCB12-IA-eng-IUS120811.pdf
  • Type: Installation Guide
  • Language: English (US)
  • Number: MCB12-IA-eng-IUS120811
  • Version: 1.1
