SUNNY ISLAND 4548-US

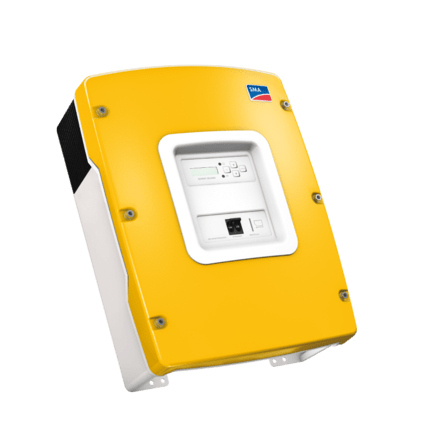

SUNNY ISLAND 4548-US / 6048-US

The efficient island manager: now with 20 percent more power

The new SMA Sunny Island 4548-US and 6048-US inverters are based on the proven off-grid technology in the Sunny Island 5048-US but now feature 20 percent more power output. A maximum efficiency of 96 percent ensures peak production, which results in reduced diesel usage and makes a smaller dimensioning of the PV array possible. The new Sunny Island with two different power ratings enable more flexible system sizing. And, with multicluster technology, up to 12 Sunny Islands can be integrated into off-grid power systems up 100 kW in size.

Efficient

  • Max. efficiency: 96 percent
  • CEC efficiency: 94 % and 94.5 %
  • State of Charge Calculation
  • Intelligent battery management for longer battery lifespan

Simple

  • Easy commissioning with the “Quick Configuration Guide”
  • Complete off-grid management
  • Excellent for grid-tied battery back up

Flexible

  • For systems from 2 kW to 100 kW
  • Single, 120/240 V split-phase and three-phase operation, connectable in parallel and modularly expandable

Durable

  • Extreme overload capacity
  • OptiCool active temperature management system
  • 5-year standard warranty
Show All / Hide All SUNNY ISLAND 4548-US SUNNY ISLAND 6048-US
AC output (loads)
Rated grid voltage / AC voltage range 120 V / 105 V – 132 V 120 V / 105 V – 132 V
Rated frequency / frequency range (adjustable) 60 Hz / 55 Hz ... 65 Hz 60 Hz / 55 Hz ... 65 Hz
AC power (at 25 °C / at 40 °C) for 3 hours 5000 W / 4000 W 6000 W / 5000 W
Rated power (@ Unom, fnom / 25 °C / @ cos φ = 1) 4500 W 5750 W
AC power at 25 °C for 30 min / 1 min / 3 s 5300 W / 8400 W / 11000 W 7000 W / 8400 W / 11000 W
Rated current / max. output current (peak) 37.5 A / 180 A for approx. 60 ms 48 A / 180 A for approx. 60 ms
Total harmonic factor output voltage / power factor with rated power 3 % / -1 ... +1 3 % / -1 ... +1
AC input (generator or grid)
Rated input voltage / AC input voltage range 120 V / 80 V – 150 V 120 V / 80 V – 150 V
Rated input frequency / allowable input frequency range 60 Hz / 54 Hz ... 66 Hz 60 Hz / 54 Hz ... 66 Hz
Max. AC input current / adjustable 56 A / 0 A ... 56 A 56 A / 0 A ... 56 A
Max. AC input power 6.7 kW 6.7 kW
Battery DC input
Rated input voltage / DC voltage range 48 V / 41 V – 63 V 48 V / 41 V – 63 V
Max. battery charging current / DC rated charging current 100 A / 85 A 130 A / 110 A
Battery type / battery capacity range Lead, NiCd / 100 Ah ... 10000 Ah Lead, NiCd / 100 Ah ... 10000 Ah
Charge control IUoU charge procedure with automatic
full charge and equalization charge
IUoU charge procedure with automatic
full charge and equalization charge
Efficiency / self-consumption
Max. efficiency / CEC efficiency 96 % / 94 % 96 % / 93.5 %
Self-consumption without load / standby 25 W / 4 W 25 W / 4 W
Protective devices
DC reverse polarity protection / DC fuse yes / yes yes / yes
AC short-circuit / AC overload yes / yes yes / yes
Overtemperature / battery deep discharge yes / yes yes / yes
General data
Dimensions (W / H / D) 467 / 612 / 235 mm
(18.4 / 24.1 / 9.3 inch)
467 / 612 / 235 mm
(18.4 / 24.1 / 9.3 inch)
Weight 63 kg / 139 lb 63 kg / 139 lb
Operating temperature range -25 °C ... +60 °C /
-13 °F ... +122 °F
-25 °C ... +60 °C /
-13 °F ... +122 °F
Features / function
Operation and display / multi-function relay Internal / 2 Internal / 2
Degree of protection (according to IEC 60529) indoors (NEMA 1) indoors (NEMA 1)
Three-phase systems / parallel connection yes / yes yes / yes
Integrated bypass / multicluster operation — / yes — / yes
State of charge calculation / full charge / equalization charge yes / yes / yes yes / yes / yes
Integrated soft start / generator support yes / yes yes / yes
Battery temperature sensor / data cable yes / yes yes / yes
Warranty (5 / 10 / 15 / 20 / 25 years) yes / opt. / opt. / opt. / opt. yes / opt. / opt. / opt. / opt.
Certificates and approvals www.SMA-Solar.com www.SMA-Solar.com
Accessories
Battery cable / battery fuse opt. / opt. opt. / opt.
Interface (RS 485 / Multicluster PB) opt. / opt. opt. / opt.
Extended generator start “GenMan” opt. opt.
Load-shedding protection / battery current measurement opt. / opt. opt. / opt.
Footnote
Type designation SI4548-US-10 SI6048-US-10
