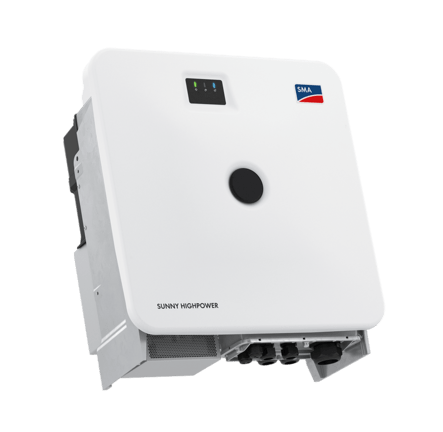

SMA Sunny Highpower PEAK3

Customized for tomorrow, today. Ideally suited for use with ennexOS

Sunny Highpower PEAK3

Accelerate large-scale installation speed.

1500 VDC, 125/150/165/172 kW, compact design

PEAK3 stands for pure power. With its compact design, the inverter offers maximum power density at minimum weight. This results in less expensive transportation and simplified installation. In combination with the project-specific DC Combiner Boxes, the PV array can be oversized up to 200 %. The Data Manager powered by ennexOS completes the system and enables it to fulfill all of the grid operator’s requirements.

Achieve Superior Economics in Ground-Mount Projects with 480 VAC Interconnections

SMA offers the ONLY 1,500 VDC inverter with the capability of interconnecting at 480 VAC without adding significant additional equipment and incurring lost energy production. For large ground mount projects, SMA’s PEAK3 delivers the most costeffective solution and highest energy production.

Learn more

Centralized or decentralized?

Which is the best layout for a large-scale PV power plant?

Read our whitepaper

Maximum safety & reliability

The PEAK3 inverter focuses on what is most important – maximum yield and optimal plant availability. All features and functionality have been specifically engineered to reduce weight, minimize potential error sources and maximize efficiency. Field-proven OptiCool™ active cooling technology ensures reliable, long-term operation.

Flexible, easily scalable plant design

The PEAK3 system solution combines the advantages of a decentralized system layout with those of the central inverter concept. The DC Combiner Boxes enable efficient planning and easy expansion of large-scale solar plants even on irregular terrain. Thanks to the modular approach, projects can be scaled both in terms of power and function. This means maximum flexibility in the plant design.

Ready for the digital energy world of tomorrow

The PEAK3 system solution is ready for ennexOS, SMA’s ground breaking digital platform. ennexOS converges the data of all relevant energy sectors to achieve modern, forward-looking energy solutions. The platform is regularly updated and currently offers powerful features such as satellite-based performance ratio monitoring.

Further information: www.ennexos.com

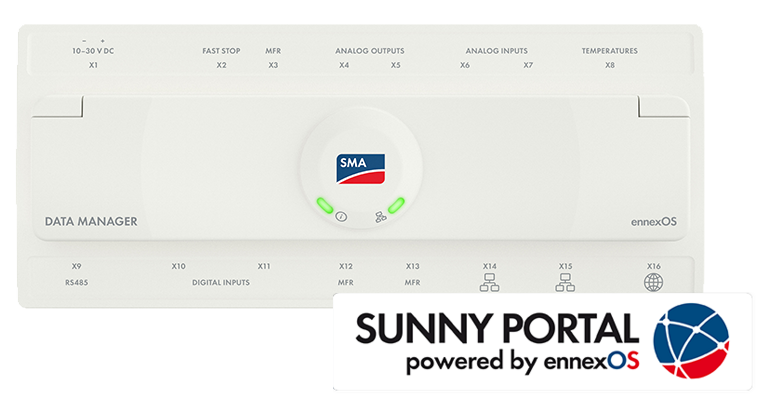

SMA Data Manager M powered by ennexOS

Fast installation, easy commissioning

The PEAK3 system solution offers smart functionalities for quick and safe installation of all devices. Ergonomic grips and the integrated hook-in mechanism simplify the mounting of the inverters. Large, stiff DC cables can be conveniently routed via a separable connection plate and allow hassle-free connection. Centralized commissioning and control is easily achieved with the SMA Data Manager.

Efficient control, convenient monitoring

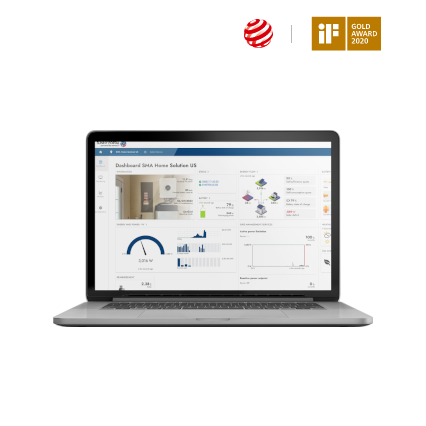

Each device can be controlled directly via reliable, fast Ethernet communication between Data Manager and inverter. The entire plant portfolio can be centrally monitored with the new Sunny Portal powered by ennexOS. Changes to the configuration are easily made across plants without setting up multiple VPN connections. Additional monitoring systems can access all devices via the open Modbus / TCP interface.

* SMA America does not sell the DC Disconnect or the DC Combiner Box.

The future-proof solution that scales with your business

More than 20 years of utility experience have gone into the development of the PEAK3, which is SMA’s latest addition to a comprehensive portfolio of utility solutions. This 1,500 VDC inverter offers high power density in a modular architecture that achieves a cost-optimized system for utility-scale PV integrators.

PEAK3 - The solution to utility PV’s greatest challenges.

Smart Connected for Utility Plants

  • Free, automatic inverter monitoring by SMA

  • Proactive communication of system-wide events

  • Lower lifecycle service costs – no on-site diagnosis needed

SMA Engineering Services

  • Comprehensive consulting by technical experts from early project stages

  • Static generator evaluation including load flow and short-circuit analysis

  • Optimization of plant behavior in systems with extended Data Manager

Additional Products

  • Weather Station: Professional measuring equipment for synchronous logging of temperature, relative humidity and irradiance

  • Remote I/O: The preconfigured I/O systems are perfectly coordinated with ennexOS and can be easily integrated into a system

Decentralized solution with up to 172 kW for large-scale PV power plants

Thanks to an intelligent system structure, all inverters and the Data Manager are installed centrally. The DC Combiner Boxes are distributed in the field. The result: maximum performance, cost-optimized cabling and improved installation and maintenance.

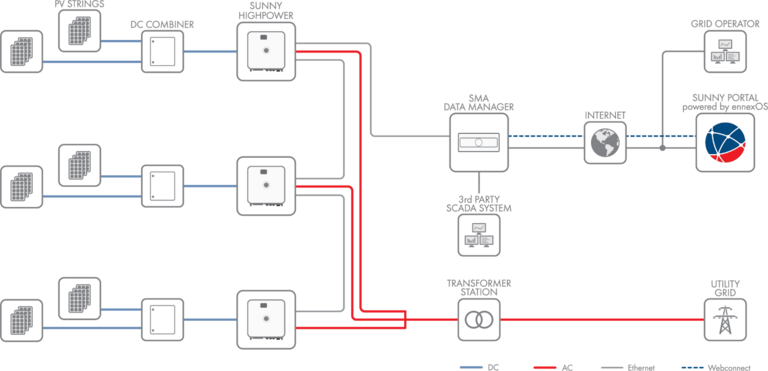

System Diagram

Whitepaper

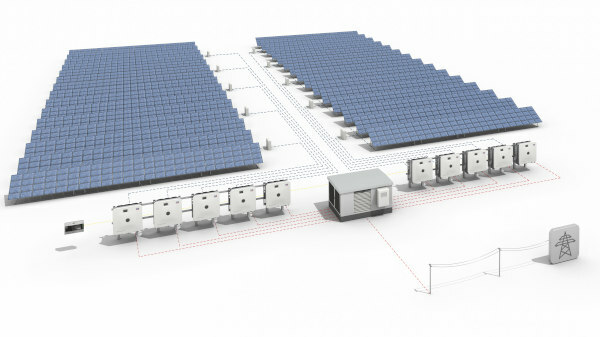

Centralized system layout – modular inverter concept

See how a centralized layout with modular inverters can benefit your next project!

Read our whitepaper

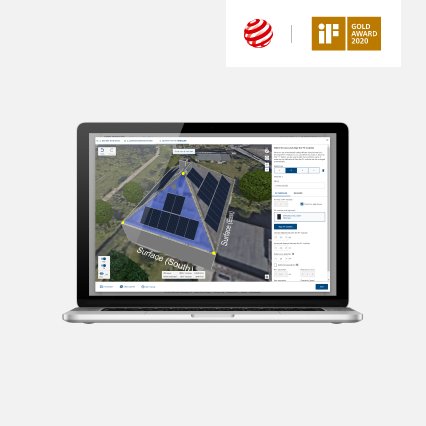

Sunny Design

With Sunny Design, you can plan your tailor-made PV system in just a few clicks.

Plan your system now
