SUNNY TRIPOWER CORE1

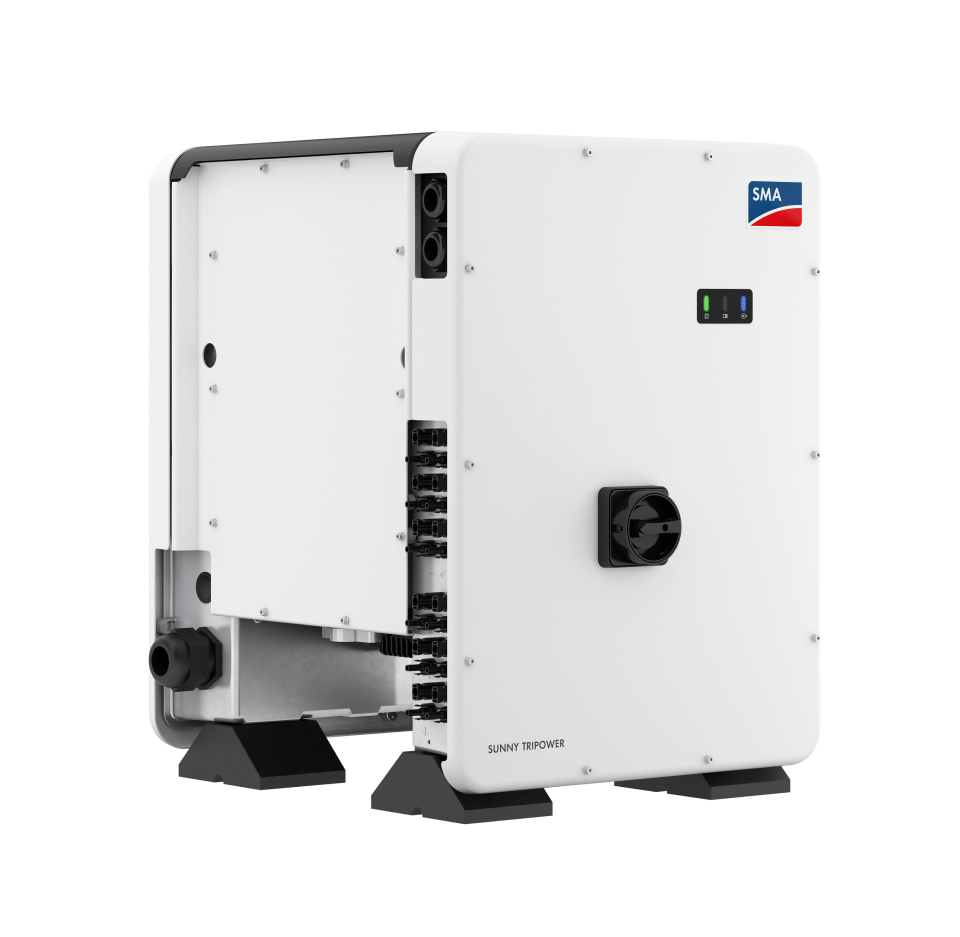

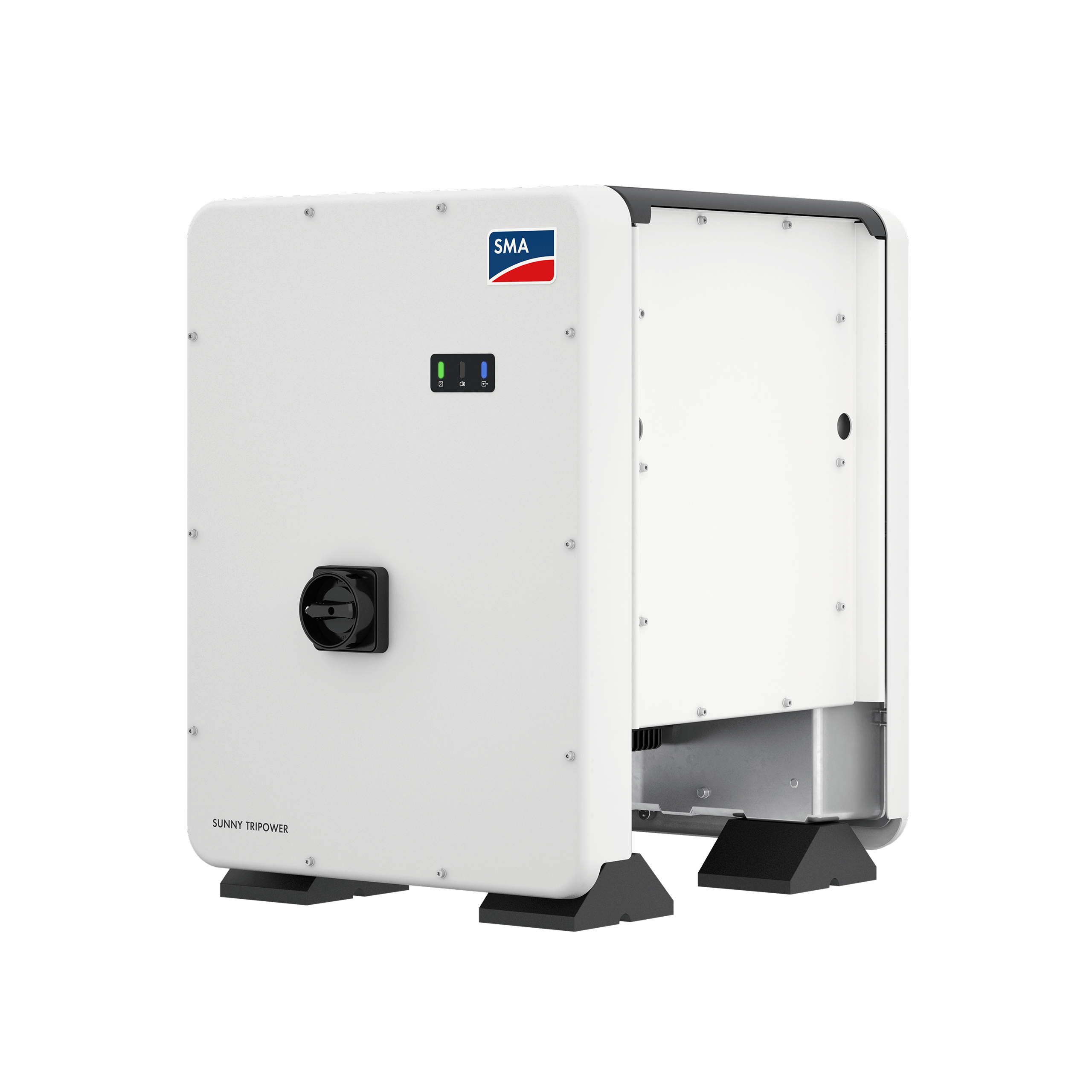

Sunny Tripower CORE1

The Sunny Tripower CORE1 is the world’s first free-standing string inverter. Its innovative design significantly reduces installation costs for commercial rooftop, carport and ground mount PV systems. Combined with industry leading performance and safety features, CORE1 offers unmatched reliability, maximum return on investment, and lower total cost of ownership that make it the preferred choice for commercial PV professionals.

Click the “Downloads” tab for the latest:

  • Datasheets

  • Installation manuals

  • Technical documentation

  • And more!

Click here

Temporary unavailability of Wifi functionality

Important supply chain update

Flexible, Cost-Effective Rapid Shutdown Solutions

SunSpec Rapid Shutdown Certified - Plug-and-Play Solution for module-level shutdown

SMA's SunSpec certified rapid shutdown solution combines a powerline signal transmitted by the Sunny Tripower CORE1 inverter with compatible module-level devices to deliver the simplest, most reliable module-level shutdown solution for complying with NEC 690.12 Rapid Shutdown of PV Systems on Buildings.

View device compatibility document

SMA SunSpec Certified Rapid Shutdown Technology

For more information on the SunSpec rapid shutdown standard or the SunSpec Alliance, click here



UL 3741 PV Hazard Control listed - Safety and Code Compliance without module-level shutdown

Sunny Tripower CORE1 are the first inverters listed to standard UL 3741 PV Hazard Control for NEC 690.12 compliance. This listing eliminates the need for module-level shutdown devices when CORE1 inverters are installed with co-listed array mounting systems – offering cost savings, faster installation and improved reliability versus traditional module-level shutdown solutions.

Find more information on UL 3741 listed mounting systems:

Sollega FastRack 510

IronRidge BX

PV performance optimization with SMA ShadeFix

Did you know PV solutions with SMA ShadeFix optimization outperform traditional module-level optimizers? SMA’s propriety technology produces more power, speeds installation, reduces service requirements, and improves safety.

Learn more about SMA ShadeFix

SMA’s Industry Leading Service and Support

Keep your installed systems operating at optimal performance by minimizing system downtime and eliminating unnecessary, costly truck rolls with SMA's comprehensive service and support available to all customers at no additional charge.

Sunny Portal powered by ennexOS

  • Clear and concise visualization of all energy data

  • Detailed system event messages and automated exception-based notifications

  • System visibility and remote tools to ensure the most efficient and effective SMA service support

Learn more

SMA Smart Connected

  • Automated proactive system monitoring

  • Saves time and money while maximizing return on investment

Learn more

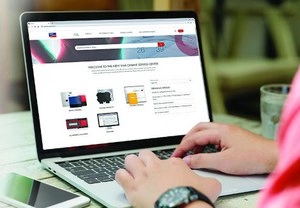

Online Service Center

  • Simplified service activities across your installed base with access to all service cases in one location

  • Access to extensive knowledge base with self-solve documentation, FAQs and information on software updates

Learn more

How does SMA Smart Connected work?

Activation of SMA Smart Connected

During registration of the system in Sunny Portal, the installer simply checks a box to activate SMA Smart Connected which commences automatic inverter monitoring by SMA.

Automatic inverter monitoring

SMA automatically monitors the inverter to identify events around-the-clock. Both installers and their customers benefit from SMA's many years of experience diagnosing sophisticated inverter technology.

Proactive communication

After a fault has been diagnosed and analyzed, SMA informs the installer and PV system operator immediately by email. So all parties are proactively prepared for the troubleshooting process ensuring minimum downtime and reducing truck roll costs.

Replacement Service

In the rare event that a replacement component is necessary, SMA automatically supplies a replacement component within one to three days of the fault diagnosis. The installer can then contact the PV system operator of his/her own accord and repair the inverter immediately.

Sunny Tripower CORE1

Accessories

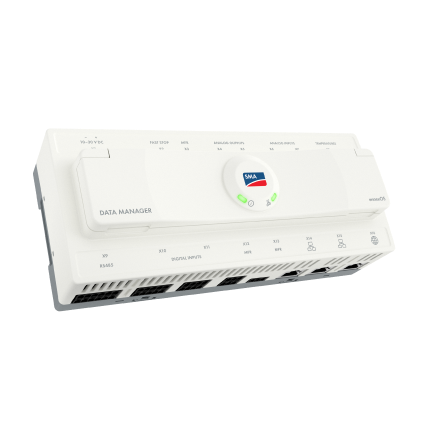

SMA Data Manager M

SMA Data Manager M is the ideal professional system interface for electric utility companies, service technicians and PV system operators. In combination with the new Sunny Portal powered by ennexOS, the Data Manager M optimizes communication, monitoring and control of PV systems with up to 50 SMA devices.

More

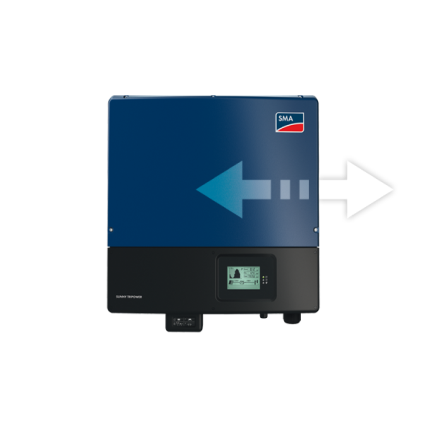

Modbus Protocol Interface

SMA Modbus interfaces provide support for the industry standard protocol for communications between electronic devices. Modbus interfaces enable the integration of SMA products with products from other suppliers for system monitoring and control.

More
Modbus Protokoll-Schnittstelle

Surge Protection Device Modules

SMA offers surge protection device (SPD) modules for inverter AC and DC connections in either Type 2 or Type 1+2 protection levels to protect the inverter from sudden voltage surges and spikes caused by lightning or grid switching events. These SPD modules are completely field serviceable and may be added or replaced at any time during the PV system service life to help reduce costly downtime due to the damaging effects of transient events.

With the SMA Sensor Module external weather sensors for solar irradiation, ambient and module temperature, and wind speed can be connected directly to the inverter, eliminating the need for a separate weather station datalogger and enclosure. Sensor data logged by the inverter is available in SMA Sunny Portal and through the inverter's Modbus protocol interfaces.

SMA Sensor Module - Quick Reference Guide
Sensor Module for monitoring the system

Universal Mounting System

The Universal Mounting System (UMS) provides a simple, efficient solution for mounting the Sunny Tripower CORE1 inverter to a wall or other fixed structure. Assembles quickly and provides a secure platform for mounting the inverter.

Universal Mounting System

External Wlan Antenna

The external antenna extension kit increases the inverter's WLAN range to overcome site conditions which inhibit wireless signals and to ensure reliable wireless communications with the network router.

External Wlan Antenna - Quick Reference Guide
External Wlan Antenna

RS485 Interface Module

The RS485 Module is the ideal solution for expansion of existing PV systems that already use RS485 communication. The RS485 module provides compatibility to the SMA RS485 fieldbus communication for reliable connection to a data logger with a cable length of up to 1,200 meters.

RS485 Interface Module - Quick Reference Guide
RS485 Interface Module

Sunny Tripower CORE1

Downloads

Betriebsanleitung

Operating instructions

Now the user manual is also available as

eManual
