SUNNY TRIPOWER CORE1
It stands on its own
SunSpec Rapid Shutdown Certified
Now with new power classes and features!
The updated CORE1 series includes two new power classes as well as a host of new features across the entire product line including:
- New 33.3 kW model for smaller arrays and repowering 600V legacy systems
- New 62.5 kW model for larger arrays and higher Wp modules
- SunSpec certified inverter technology in conjunction with SunSpec certified rapid shutdown devices, which gives integrators a cost-effective way to achieve compliance with NEC 2017 module-level shutdown
- Advanced AFCI compliant to new Standard UL 1699B Ed.1 for arc fault protection
- SMA Smart Connected proactive service strategy which can cut truck rolls in half
Up to 60% faster installation of commercial PV systems

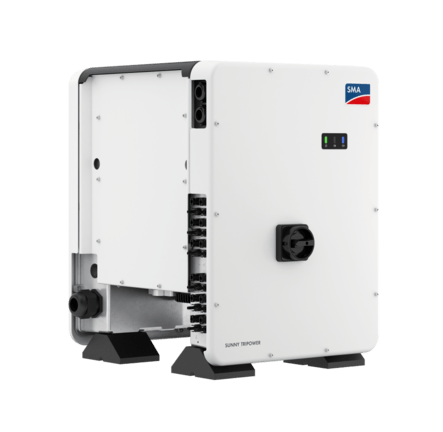

The Sunny Tripower CORE1 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces. The groundbreaking new design allows reductions in installation time of up to 60% and, at the same time, lowers the total cost of ownership (OPEX).
Top Performance and Maximum Efficiency Thanks to Innovative Design
The CORE1 is the third generation in the successful Sunny Tripower product family and is revolutionising the world of commercial inverters with its innovative design. SMA engineers developed an inverter that combines a unique design with an innovative installation method to significantly reduce installation time and provide all target groups with a maximum return on investment.
Scalability for Maximum Energy Yields

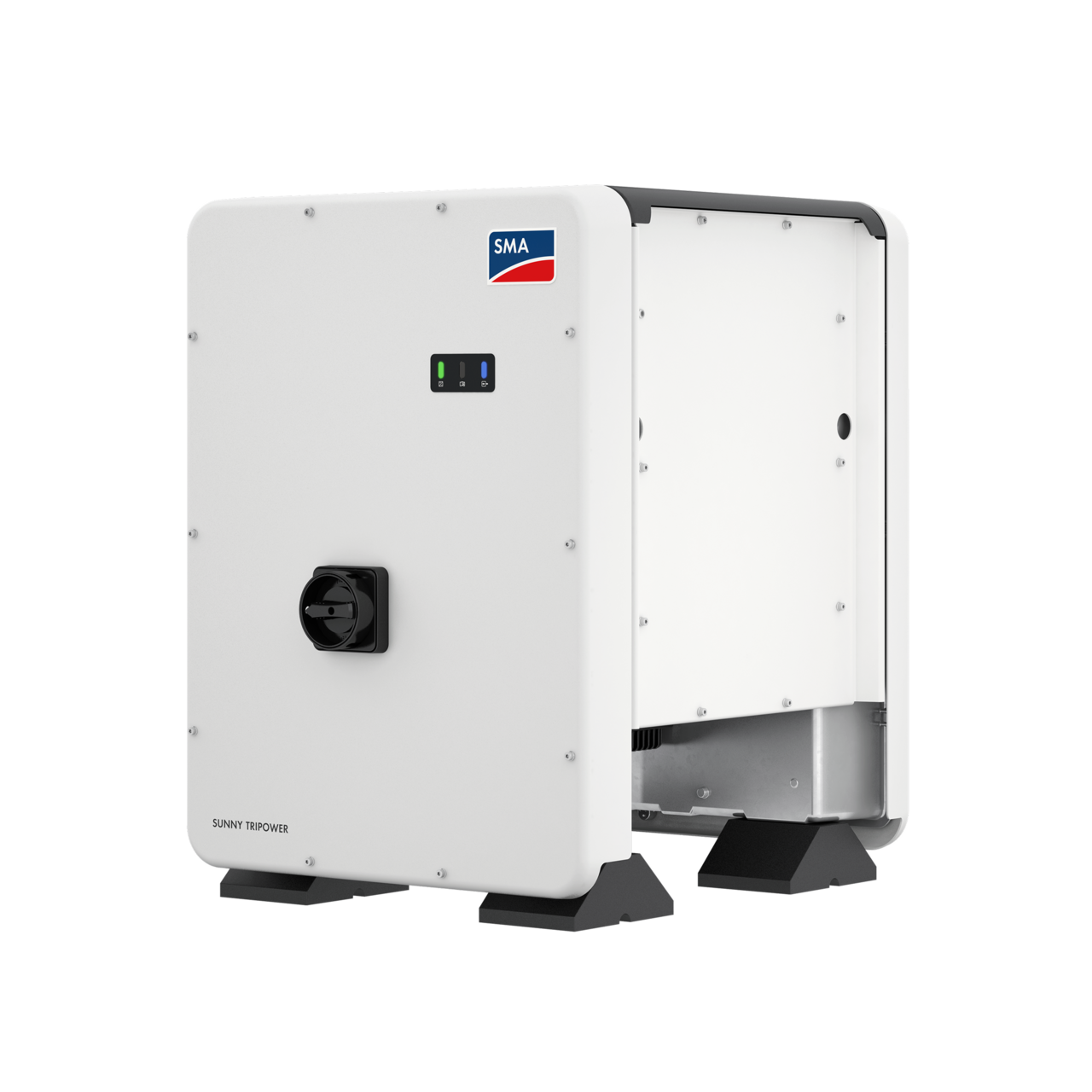

- With a capacity of 50 kW, the Sunny Tripower CORE1 is scalable up to the megawatt range
- The unique design enables over-dimensioning of a PV array of up to 150%
- Six independent MPP trackers guarantee optimal energy production for every use, even in shading
Consistently Integrated Concept
- The innovative, fully integrated design ensures low BoS costs, simpler processes and lower material expenses
- Alongside the 12 direct string inputs, a DC disconnector and, as an option, AC and DC overvoltage protection are integrated
Efficient and Economical
- No additional mounting racks are required
- Only a simple substructure is needed for other commercial PV applications
- There are additional savings from the considerably lower expenditure on logistics, installation and materials
OptiCool™ Active Cooling System
- Ensures reliable operation and maximum energy production
- Secures your investment in PV
- Reduces maintenance costs due to its high-performance technology, which has proved its worth worldwide in over 50 GW of installed power
Fast, Easy Communication
- Integrated Wi-Fi interface enables access with any mobile device
- Easy and uncomplicated configuration and commissioning with the SMA online assistant accelerate installation
Smooth Grid Integration
- Powerful PV system monitoring and control functions, SunSpec ModBus® compatibility and optional 24/7 remote monitoring
- Reduces maintenance costs due to its high-performance technology, which has proved its worth worldwide in over 50 GW of installed power
The Future of Commercial PV Systems
From delivery and installation to operation, the Sunny Tripower CORE1 generates widespread savings in logistics, labor, materials and services. With integrated Wi-Fi access for fast commissioning, up-to-date plug-and-play communication and smart grid support functions, PV installations are quicker and easier to complete than ever before.
Achieve Cost Savings...
SUNNY TRIPOWER CORE1 for distributors
- Flexible use with just one product
- Worldwide platform for universal use
- Fewer components and BoS components
- Extensive support and service
Reduce Installation and Purchase Price...
SUNNY TRIPOWER CORE1 for EPCs and Developers
- Plug-and-play concept
- Faster installation and lower labor costs
- Reduced material costs
- Free tool for system planning
Ensure Top Performance...
SUNNY TRIPOWER CORE1 for energy providers
- The lowest LCOE
- Optional 24/7 remote monitoring thanks to SMA’s number one rated service team, worldwide
- An effective interface for customer monitoring
- Intelligent grid management service
SUNNY TRIPOWER CORE1
Watch the installation video
SMA’s SunSpec certified shutdown device
SMA’s SunSpec certified rapid shutdown device offers the fastest, most reliable, and safest method for complying with NEC 2017 690.12. Using far fewer components than more complex alternatives, SMA’s SunSpec certified shutdown device is a plug-and-play solution that operates on a simple powerline signal, reducing commissioning requirements. The device operates on the industry standard SunSpec rapid shutdown signal, improving performance and reliability.
For more information on the SunSpec rapid shutdown standard or the SunSpec Alliance, click here.
Fast Installation and Grid Integration
Cutting-edge configuration and communication with the SMA online assistant and SMA Web browser access via WLAN with any mobile device. Two Ethernet ports with ModBus® TCP (including SunSpec) ensure smooth communication even in large-scale PV plants.
Related Blog Posts
Solar Installation in a Class of Its Own
Carport solar project brings savings to the classroom and the environment. Students returning to the Smithtown High School West campus ...
Argentinian Company Unearths Clean, Renewable Technology
In Cerro Negro Córdoba, Argentina, sits the Fluorita Cerro Negro hybrid PV-diesel plant. It powers a mining operation that specializes ...
Tech Tip: Installation of the TS4-R-F Line of SMA-Compatible SunSpec Certified Rapid Shutdown Receivers
In our latest Tech Tip video, SMA Solar Academy Senior Technical Trainer Mike Mahon demonstrates how to install the TS4-R-F ...
Paradise Energy Solar Carport Project Revs Up the Savings
When the team at Turn 14 Distribution, a premium vehicle performance warehouse distributor with corporate headquarters in Horsham, Pennsylvania, wanted ...
SMA Sunny Tripower CORE1 Inverters: Repowering Ready
Part II: Maximize and Protect In the first installment of this series, we focused on MPP voltage. This post will ...
SMA DATA MANAGER M
SMA Data Manager M is the ideal professional system interface for electric utility companies, service technicians and PV system operators. In combination with the new Sunny Portal powered by ennexOS, the Data Manager M optimizes communication, monitoring and control of PV systems with up to 50 SMA devices.
Modbus Protocol Interface
SMA Modbus interfaces provide support for the industry standard protocol for communications between electronic devices. Modbus interfaces enable the integration of SMA products with products from other suppliers for system monitoring and control.
SURGE PROTECTION DEVICE MODULES
SMA offers surge protection device (SPD) modules for inverter AC and DC connections in either Type 2 or Type 1+2 protection levels to protect the inverter from sudden voltage surges and spikes caused by lightning or grid switching events. These SPD modules are completely field serviceable and may be added or replaced at any time during the PV system service life to help reduce costly downtime due to the damaging effects of transient events.
Sensor Module for monitoring the system
With the SMA Sensor Module external weather sensors for solar irradiation, ambient and module temperature, and wind speed can be connected directly to the inverter, eliminating the need for a separate weather station datalogger and enclosure. Sensor data logged by the inverter is available in SMA Sunny Portal and through the inverter's Modbus protocol interfaces.
UNIVERSAL MOUNTING SYSTEM
The Universal Mounting System (UMS) provides a simple, efficient solution for mounting the Sunny Tripower CORE1 inverter to a wall or other fixed structure. Assembles quickly and provides a secure platform for mounting the inverter.
External WLAN Antenna
The external antenna extension kit increases the inverter's WLAN range to overcome site conditions which inhibit wireless signals and to ensure reliable wireless communications with the network router.
RS485 interface module
The RS485 Module is the ideal solution for expansion of existing PV systems that already use RS485 communication. The RS485 module provides compatibility to the SMA RS485 fieldbus communication for reliable connection to a data logger with a cable length of up to 1,200 meters.
Now the user manual is also available as
eMANUAL
